Home>Products>Hydraulic Turrets>EVS

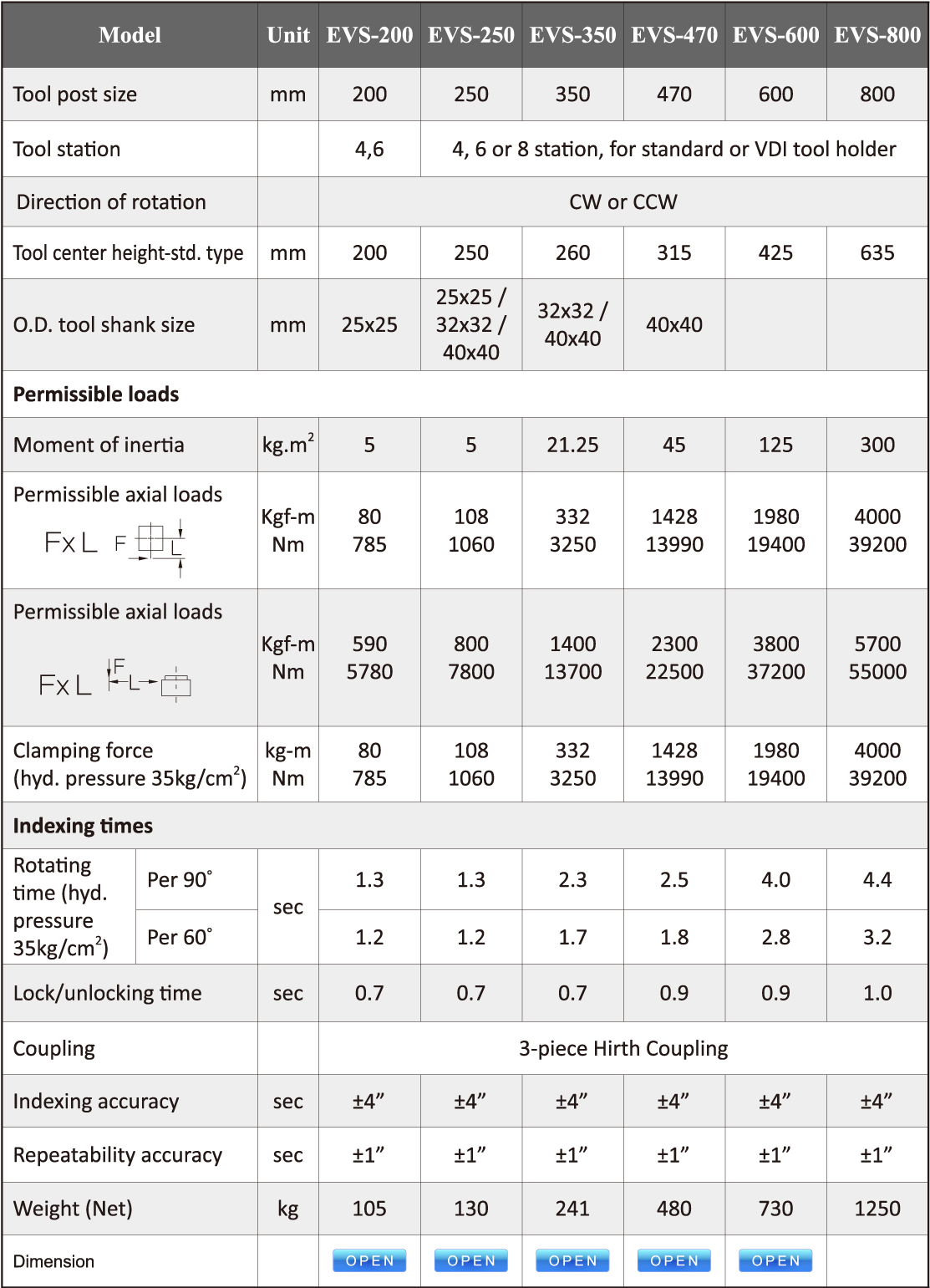

EVS / EVS series head type tool turrets

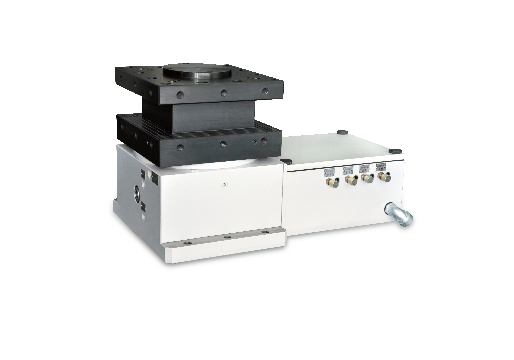

  • EVS-250

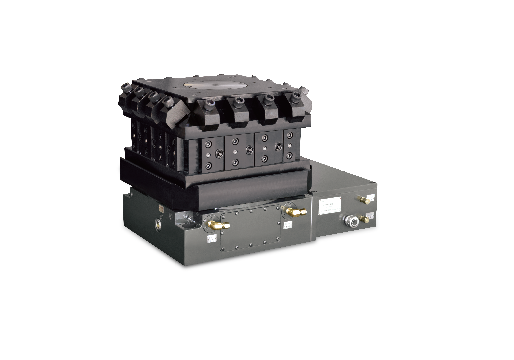

  • EVS-350

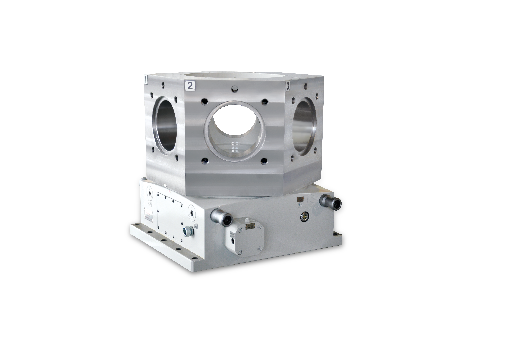

  • EVS-470

Non-lifting formula turret design has reinforcing holding force for large tool on unbalance loading.
A solid sealing structure prohibits chips or the cutting fluid among the cutting environment for long life.
High indexing accuracy is ensured by means of high precision hirth gears.
High loading capacity.
Quick tool holder mounting and high repeatability accuracy.
Internal cooling supply to holders for coolant through tool.
