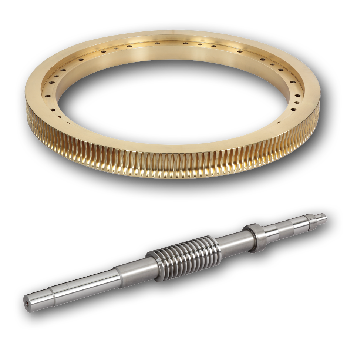

●Materials
Worm gear: Special high-tensile aluminum-brass equal in strength to a steel alloy.
Worm shaft: Hardened alloy steel
●High Rotation Torque
The combination of brass and alloy steel offers
less friction. Motor torque is transferred
efficiently. High class material worm system
guarantees high torque transmission.
●Large Worm Gear
The worm gear with a large pitch diameter
creates a large engagement area and less pressure on the contact surface, resulting in resistance against wear.

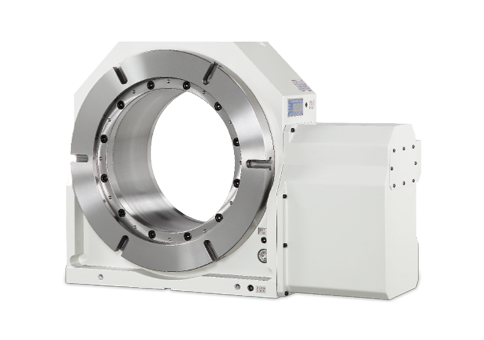

| Rugged, 360° Surround Clamping | |
| Our massive, 360° low volume, high speed Hydraulic Clamping System is immediately behind the table to ensure maximum rigidity during machining operations. A solid and sealed clamping structure maintains maximum holding power while keeping contaminates out. Only a small amount of hydraulic fluid is required to achieve an optimum clamping force, the source of which can be from a mini hydraulic pump unit or an air-over-oil intensifier; both are options. |
|
 |
 |
