Home>Products>CNC Indexing Tabler>HC-H
HC-H / CNC Horizontal Indexing Tables with
Hirth Gear - Hydraulic Clamping

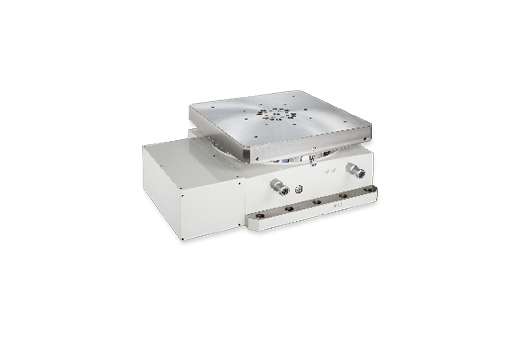

  • HC-320H

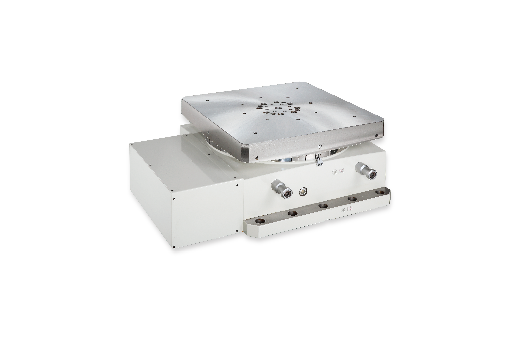

  • HC-450H

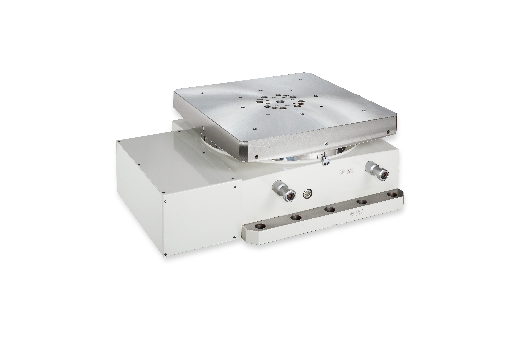

  • HC-600H

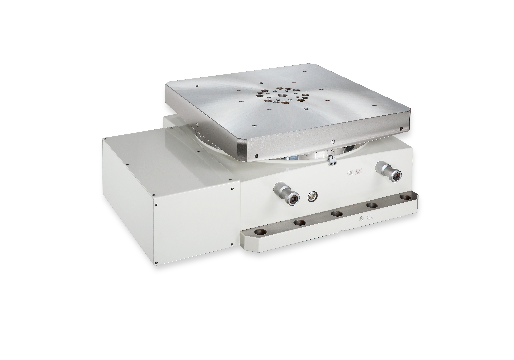

  • HC-630H

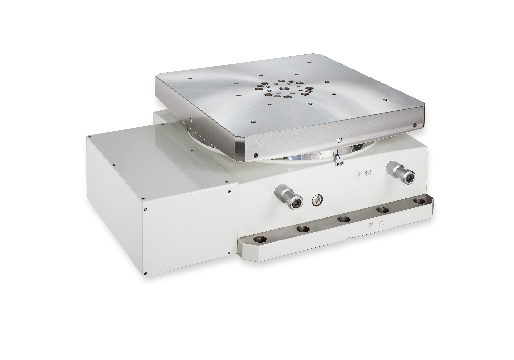

  • HC-800H


HC-H series Indexing Tables are rotated by a dual lead worm gear driven via a servo motor. Equipped with a 3 piece Hirth coupling, these tables achieve a superior positioning accuracy and the hydraulic clamping system provides the ultimate rigidity.
High density housings resist flexing under load and can accommodate high machining forces.
